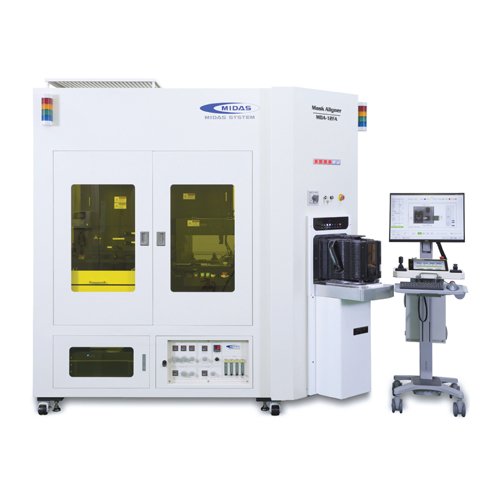

POLOS MDA-12FA - 12" Mask Aligner

POLOS MDA-12FA - 12" Mask Aligner

Files

Product description

The brand new MDA-12FA represents the next generation of Full-Field lithography systems. This model offers a Full Automatic Mask Aligner platform with a higher Overlay Accuracy and more reliable operation than conventional systems. It is great for Ceramic, Probe Card and WLP applications. The MDA-12FA offers higher productivity and user friendly controls.

Benefits

  • PC Operation with PLC control
  • Image grab & Data log
  • Motorized joystick control
  • Microscope position control system
  • Enable Ceramic substrate for Bump
MIDAS

POLOS MDA-12FA - 12" Mask Aligner

Higher Overlay Accuracy and more reliable operation than conventional systems
For Ceramic, Probe Card and WLP applications
Higher productivity and user friendly controls
PC Operation with PLC control

Specifications

Brand
MIDAS
Product Number
MDA-12FA
Material
Stand-alone System
Max. substrate size
Up to 12" (300 mm)
System type
Full Automatic
Light source
5 kW UV Lamp
Status
Request information

Options

Webshop
Ionizing Pen - Model 3080
3080S
Complementary Equipment
POLOS
Ionizing Pen - Model 3080
Quickly and easily, remove dust that adheres to surfaces such as silicon wafers and masks. This device is an ideal tool to clean parts and assemblies.
Remove static electricity on a material or object.
Ø1.5 mm air outlet
Pressure speed control is adjustable
View product
Webshop
UV Intensity Meter (365nm)
UV-MTR
Complementary Equipment
POLOS
UV Intensity Meter (365nm)
The UV Intensity meter represents next generation of full-field UV Intensity meter systems. The sensor and probes are fully digital, so no calibration is needed
Suitable for measuring 365 nm (UV I-Line)
0 ~ 999.99 mW/cm2 intensity
Hand-held
View product
