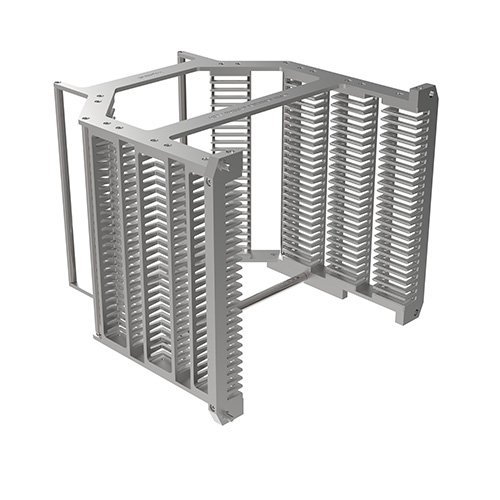

Stainless steel cassette (WHS-M3) 150 mm (6”)

Stainless steel cassette (WHS-M3) 150 mm (6”)

Product description

Applications:

  • Bake - Long term thermal bake applications where wafers are left in ovens for multiple days.
  • Thin Wafer Handling - Thin wafer handling where sharp thin wafers cut into plastic cassettes.
  • Thick Wafers - Bonded or thick wafer applications where industry standard plastic cassettes will not work due to slot dimensions.
  • Ultrasonic and megasonic  - cleaning applications where open side wall stainless steel cassettes perform better than soundwave dampening plastic cassettes.

The M3 series is a high temperature stainless steel for 150 mm (6”) diameter wafers. SEMI compliant 25-slot, 4.76 mm (0.1875”) pitch, 14.5 mm (0.570”) D1, 8° slot angle in the profile of an industry plastic cassette. Electro polished (EP) type 316 stainless steel.  For thermal automation processing, general bake applications up to 550°C; or mega- and ultra- sonic cleaning applications.

Stainless steel cassette (WHS-M3) 150 mm (6”)

Choose your version:
High Temperature Applications up to 550°
Strong, Dimensionally Stable Design
SEMI Automation Compliant
Scratch Reducing Beveled Slot Design
Applications: Bake, Thin Wafer Handling, Thick Wafers and Ultrasonic and megasonic

Specifications

Product Number
WHS-M3-1808041
Material
Stainless steel SST
Size
150 mm (6”)
Slots
25
Status
Request information
