Process aluminum cassette BI-PITCH 13 slot flat slot-/thin wafer (WHS-M1) 200 mm (8") with Handle

Process aluminum cassette BI-PITCH  13 slot flat slot-/thin wafer (WHS-M1) 200 mm (8") with Handle

Product description

Applications:

  • Process Equipment - Thermal processes environments where the wafer is processed in the cassette above 43° C (110° F), the typical structural threshold upper limit of plastic process cassettes.  This includes chemical vapor deposition (CVD), rapid thermal processing (RTP) and wafer annealing applications.
  • Bake - Long term thermal bake applications where wafers are left in ovens for multiple days.
  • High wafer insertion temperatures - Process equipment where wafer insertion temperatures (wafers coming out from the process tool) exceed the melting point of a plastic cassette.  The need for higher throughput reduces the amount of time the wafers are left inside the chamber to cool and acclimate.
  • Internal environment cassette - Cluster tool automation environments where a cassette is idle inside a heated vacuum environment (chamber) for multiple process steps.
  • Precision carrier requirements - Moderate-thermal automation environments where there is a need for dimensional precision that a plastic cassette cannot offer.
  • Thin Wafer Handling - Thin wafer handling where sharp thin wafers cut into plastic cassettes.
  • Thick Wafers - Bonded or thick wafer applications where industry standard plastic cassettes will not work due to slot dimensions.

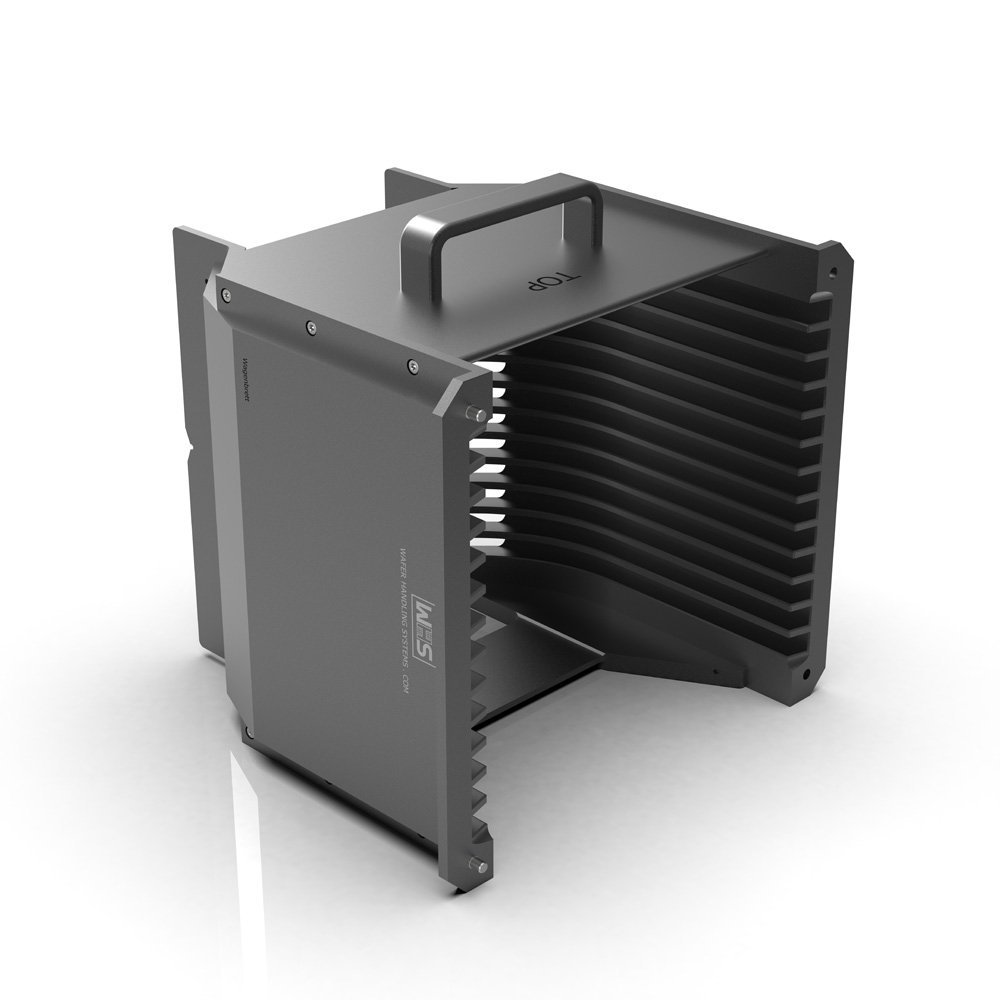

The M1 series is an all aluminum 200 mm (8") 13-slot metal cassette with option a end wall handle for processing semiconductor wafers in a thermal environment, up to 350° C. A SEMI compliant cassette with outside dimensions and 8° angular slots similar to an industry standard plastic cassette for easy integration into stage and transfer automation considerations. All aluminum surfaces are (HC) hard clear anodized for prolonged abrasion resistance.Custom configurations available (may incur minimum order quantity amounts): EN-electroless nickel plating on aluminum types for high-vacuum applications; flat profile slotting for thin or thick wafers; end-wall fixed handles; dual h-bar configurations for backside wafer processing.


Process aluminum cassette BI-PITCH 13 slot flat slot-/thin wafer (WHS-M1) 200 mm (8") with Handle

Choose your version:
Aluminum with wear-resistant, smooth hard-coating
Heat-resistant up to 350°C (Al)
Smooth slot-entry and -shape
Vacuum vented screws
Design according to SEMI-standard

Specifications

Product Number
WHS-M1-1807796
Material
Aluminum
Size
200 mm (8”)
Slots
13
Status
Request information
