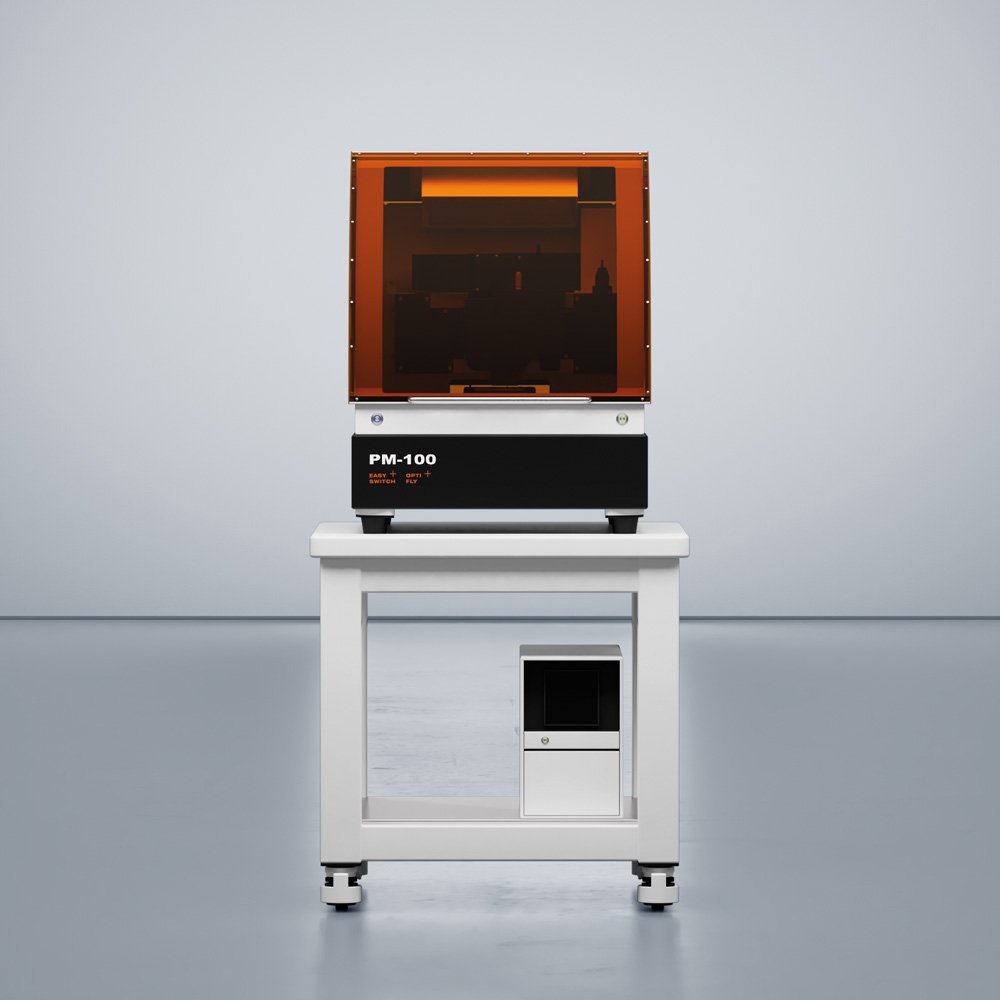

Meet the smallest high quality laser beam spot available in the market. The POLOS® PM-100 is a versatile UV laser writer with high precision components specifically designed to give the user the highest degree of freedom to create microstructures in photosensitive layers. The PM-100 is a compact table-top system. All major components are installed within the enclosure, which allows for quick and easy installation. A Microsoft Windows based desktop PC with controller software is included in the delivery.
The PM-100 system includes a 405 nm optical module capable of writing structures as small as 300 nm in photoresist layers. This user-friendly tool supports up to 4095 levels of gray-scale or pure binary mode and allows for 3D optical structures, surface structures as well as mask projects. Real time laser controlled auto-focus and laser intensity control ensure high quality imaging during the entire exposure process. The control electronics are all mounted within the frame except for the control PC.
Benefits
- Highest resolution on the market with 405 nm laser
- 375 nm source available for more demanding applications
- Minimal maintenance costs
- Compact optical module: use a spare optical unit for revolutionary machine downtime reduction
- User-friendly operation
- Supports substrates up to 4”x4”
Dimensions
- Width: 600 mm
- Height: 750 mm
- Depth: 600 mm (not including optional air duct)
- Weight: 260 kg
- Compressed air: 57 Bar,
- Air quality according to ISO8573-1:2010 class 3 or better.
