POLOS

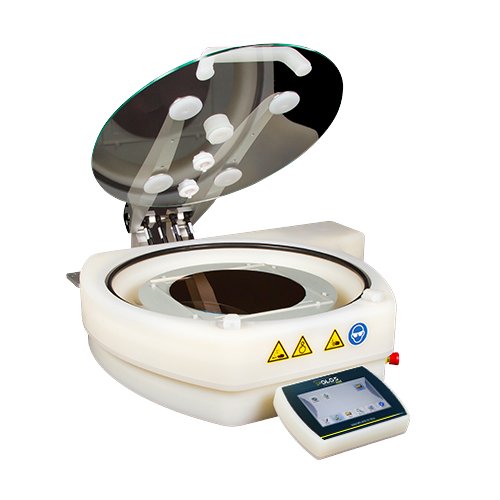

POLOS 450 Advanced

POLOS 450 Advanced
54519.696

Webshop » Coating » Spin Coaters

Product description

POLOS 450 Advanced Single Substrate Spin Processor, Desktop version with NPP housing, spincup, manual chemical dispense and heavy duty motor. An aerodynamically efficient chamber enhances uniformity, while the natural polypropylene or Stainless Steel process chamber guarantees a contamination-free, easy to clean process area. All units feature programmable CW & CCW Rotation and puddle function.

Most suitable for drying, rinse/cleaning and automatic coating

Specifications:

  • Up to 500 mm round and 350 x 350 mm square substrates
  • Material: Natural Polypropylene (High grade NPP, tool body and all wetted surfaces)
  • Manual chemical dispense 2 automatic static dispense lines
  • Pneumatic lid opening and closing
  • Chuck adapter and one vacuum chuck for up to 3 wafer sizes
  • Speed max 1500 rpm
  • Automatic Sequential or Parallel Chemical Dispensee
  • Transparent Lid with 6x injector assemblies around centre. (Each programmable independently)
  • CW & CCW Puddle Rotation
  • (Detachable) Colour Touchscreen with Customisable Icons
  • Standard 1" Drain Connection
  • Precision Digital Motor Controller (max 1,500 rpm)
  • Separate module for housing 6x peristaltic pumps
POLOS

POLOS 450 Advanced

Spincup
Manual chemical dispense
Heavy duty motor
Contamination-free, easy to clean process area

Specifications

Brand
POLOS
Product Number
44399
Material
Natural Polypropylene (NPP)
Substrate size
Ø460 mm or 10" x 10" square substrates
Model
Desktop
System Type
Advanced Series
Status
Request information

Options

Webshop
Dispense Vessel (complete)
Accessories & Options
POLOS
PTFE Dispense Vessel (complete set)
7013.1237

Webshop » Coating » Accessories & Options
Auto Dispense Lines Full PTFE dispense vessel automated injector line.
Precision Regulator 0.05-2 Bar
Automated injector line
Male Connector
Webshop
42870
Accessories & Options
POLOS
POLOS foot pedal (3 pedals)
321.8116

Webshop » Coating » Accessories & Options
Hands-free usage
Controlling start/stop
Vacuum activation
Webshop
VP-230V
Accessories & Options
POLOS
Vacuum Pump (Oil-less)
1005.5584

Webshop » Coating » Accessories & Options
VP-230 oil-less vacuum pump is a small footprint, lightweight pump wich is ideal for labratory applications.
Max air flow: 166 L/min
Frequency: 50 Hz
Max vacuum (abs): 80 mbar
